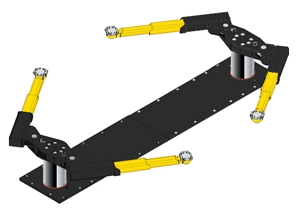

12K Wide Inground Lift
Item Number: CLFEW1220
Supplier: CHALLENGER LIFTS INC


log in for dealer pricing.




Description

The EW1220 12K hydraulic inground lift provides an extra-wide drive-through clearance for servicing wide-bodied and electric vehicles. Its design allows for battery-lowering out of electric vehicles and comes standard with True 3-Stage arms and double-telescoping screw pads.

Features

  • 3-Stage front and rear arms and double-telescoping screw pads
  • No Bolster to Drive Over
  • The extra width provides technicians enough clearance to remove/install battery and battery packs easily
  • Available in Red, Black, or Blue - Must specify color at time of order.

Note: Bench-mounted controls are optional.

Warranty

Click here for warranty information.



Product Specification

Lifting Capacity*12,000 lbs.
Arm Configuration3-Stage Front / Rear
Stroke72"
Rise Height78"
Overall Width121-1/2"
Drive Thru Clearance88"
Arm ReachMin: 20-1/8" Max: 48-1/8"
Screw Pad Height4" - 6-1/8"
Plunger Diameter8-1/2"
Air Supply Requirements90 - 120 PSI
Standard Motor / Voltage2H, 208V - 230V, 1PH, 60 Hz
Rise Time**63 Seconds
Maximum Load Per Arm3.000 lbs.
Required Ceiling Height12'
Recommended Bay Size14' Wide x 24' Deep
*Lift capacity ratings based on loads equally distributed on all four arms.
**Lifting speed may vary depending on type, viscosity and temperature of oil as well as vehicle weight.
