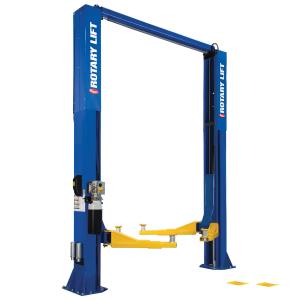

16K 2-Post Heavy Duty Lift with Shockwave

Item Number: ROTSPO16SW

Supplier: ROTARY LIFT Complete Item List

Direct from 3rd Party Supplier
Add To Cart

Description

Shockwave equipped 16,000 lb. 2-Post Super Duty Symmetric Lift with greater lifting capacity and innovative three-stage Trio™ Arms.

Features

Industry leading versatility - Pick up a greater variety of vehicles faster and easier all on one heavy duty 2-post lift
Trio Arms offer three stages of flexibility in a two-piece arm. No extra heavy inner arms to move for positioning.
Service class 1 to class 5 vehicles
22% greater arm reach than conventional 2 stage arms
Automatic arm restraints engage when the lift is raised
Thread-up adapters for easy vehicle contact
ALI certified
Shockwave equipped
Spotline motion activated laser

Warranty

One year

Product Specification

Min./max. high step height	15-31/32" to 18-1/32"
Minimum Bay Size	15' x 30'
Motor / Voltage	5 HP / 110v
Time of Full Rise	60 seconds at full capacity, 36 seconds at half capacity
Standard ceiling height required	15'2" to 16'8"
Total product weight	3,500 lbs.
Lifting capacity	16,000 lbs.
Max. load per arm	4,000 lbs.
Min. truck adapter rise height	77-31/32"
Max. truck adapter rise height	80-1/32"
Standard height overall	15' to 16'6"
Standard width overall	13'5"
Standard drive-thru clearance	111-11/32"
floor to overhead switch	15' 10-13/16"
Reach / front arm min. / max.	34-11/16" / 64"
Reach / rear arm min. / max.	34-11/16" / 64"
Min./max. truck adapter height	5-31/32" to 8-1/32"
Min./max. low step height	10-31/32" to 13-1/32"
